Working with GXT(Ext GWT) Grid : Create an Editable Grid

Last week i was so busy that i can not afford to manage time on writing. And i am afraid that whether i can keep my promise on writing a series of tutorials about GXT and GWT or not. In the upcoming days i have to work in six! projects simultaneously. Good thing is that there will be a lot of new things that i can learn and surely i will share those here whenever i get time. Now i will show you how you can make a GXT Grid editable with TextField, ComboBox and Date Picker.

Create a new project named GxtEditableGrid and add GXT library in the project. As like my previous blogs about GXT Grid i have used the same Employee model and TestData class for generating data. You will find the code of these classes here. Go to the onModuleLoad method of GxtEditableGrid class and remove all the auto generated code of this method.

Starting with creating a list of ColumnConfig and a ColumnConfig instance named column. Configure this column to show and edit Employee Name first. To add the editing functionality create a TextField and a CellEditor with this TextField. Then set the CellEditor as the editor of the column.

List<ColumnConfig> configs = new ArrayList<ColumnConfig>();
ColumnConfig column = new ColumnConfig();
column.setId("name");
column.setHeader("Employee Name");
column.setWidth(200);
TextField<String> text = new TextField<String>();
text.setAllowBlank(false);
text.setAutoValidate(true);
column.setEditor(new CellEditor(text));
configs.add(column);



For the Department column rather than using a TextField we are going to use a ComboBox to edit this field. First create a SimpleComboBox and add the possible values to it.

final SimpleComboBox<String> combo = new SimpleComboBox<String>();
combo.setTriggerAction(TriggerAction.ALL);
combo.add("General Administration");
combo.add("Information Technology");
combo.add("Marketing");
combo.add("Accounts");

Then create a CellEditor with the SimpleComboBox and set it as the editor of the department column.

CellEditor editor = new CellEditor(combo) {
@Override
public Object preProcessValue(Object value) {
if (value == null) {
return value;
}
return combo.findModel(value.toString());
}

@Override
public Object postProcessValue(Object value) {
if (value == null) {
return value;
}
return ((ModelData) value).get("value");
}
};

column = new ColumnConfig("department", "Department", 150);
column.setAlignment(HorizontalAlignment.LEFT);
column.setEditor(editor);
configs.add(column);

For the Designation column configure it like the Employee Name column and for the Salary column set a cell editor with NumberField. That is this field will only accept numeric values.

column = new ColumnConfig("designation", "Designation", 150);
column.setAlignment(HorizontalAlignment.LEFT);
TextField<String> text2 = new TextField<String>();
text2.setAllowBlank(false);
text2.setAutoValidate(true);
column.setEditor(new CellEditor(text2));
configs.add(column);

column = new ColumnConfig("salary", "Slary", 100);
column.setAlignment(HorizontalAlignment.RIGHT);
final NumberFormat number = NumberFormat.getFormat("0.00");
GridCellRenderer<Employee> checkSalary = new GridCellRenderer<Employee>() {
public String render(Employee model, String property, ColumnData config, int rowIndex,
int colIndex, ListStore<Employee> employeeList, Grid<Employee> grid) {
double val = (Double) model.get(property);
String style = val < 70000 ? "red" : "green";
return "<span style='color:" + style + "'>" + number.format(val) + "</span>";
}
};
column.setRenderer(checkSalary);
column.setEditor(new CellEditor(new NumberField()));
configs.add(column);

To change date field in a Grid with date picker create a DateField, set a date fomat for the DateField and finally set this as the editor for the ColumnConfig.

DateField dateField = new DateField();
dateField.getPropertyEditor().setFormat(DateTimeFormat.getFormat("MM/dd/y"));

column = new ColumnConfig("joiningdate", "Joining Date", 100);
column.setAlignment(HorizontalAlignment.RIGHT);
column.setEditor(new CellEditor(dateField));
column.setDateTimeFormat(DateTimeFormat.getMediumDateFormat());
configs.add(column);

To enable the editable functionality of grid you have to create an instance of EditorGrid class instead of a Grid class now. Other things are described in my previous tutorials about GXT Grid.

ListStore<Employee> employeeList = new ListStore<Employee>();
employeeList.add(TestData.getEmployees());
ColumnModel cm = new ColumnModel(configs);

final EditorGrid<Employee> grid = new EditorGrid<Employee>(employeeList, cm);
grid.setStyleAttribute("borderTop", "none");
grid.setAutoExpandColumn("name");
grid.setBorders(true);
grid.setStripeRows(true);

ContentPanel cp = new ContentPanel();
cp.setBodyBorder(false);
cp.setHeading("Employee List");
cp.setButtonAlign(HorizontalAlignment.CENTER);
cp.setLayout(new FitLayout());
cp.setSize(700, 300);
cp.add(grid);
RootPanel.get().add(cp);

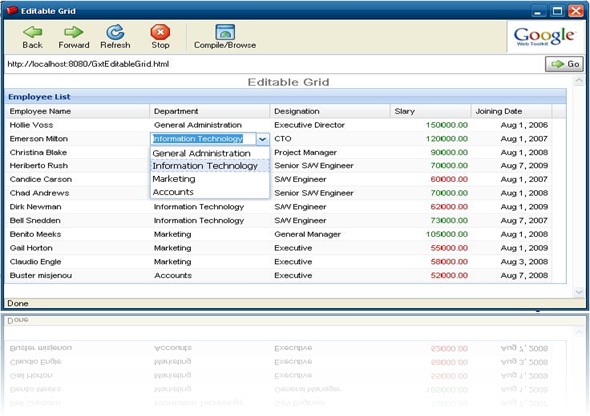

That's all. Run the application check the magic GXT. To view the live demo of this tutorial Click here.

editableGrid
